Thema H2O 16
A++

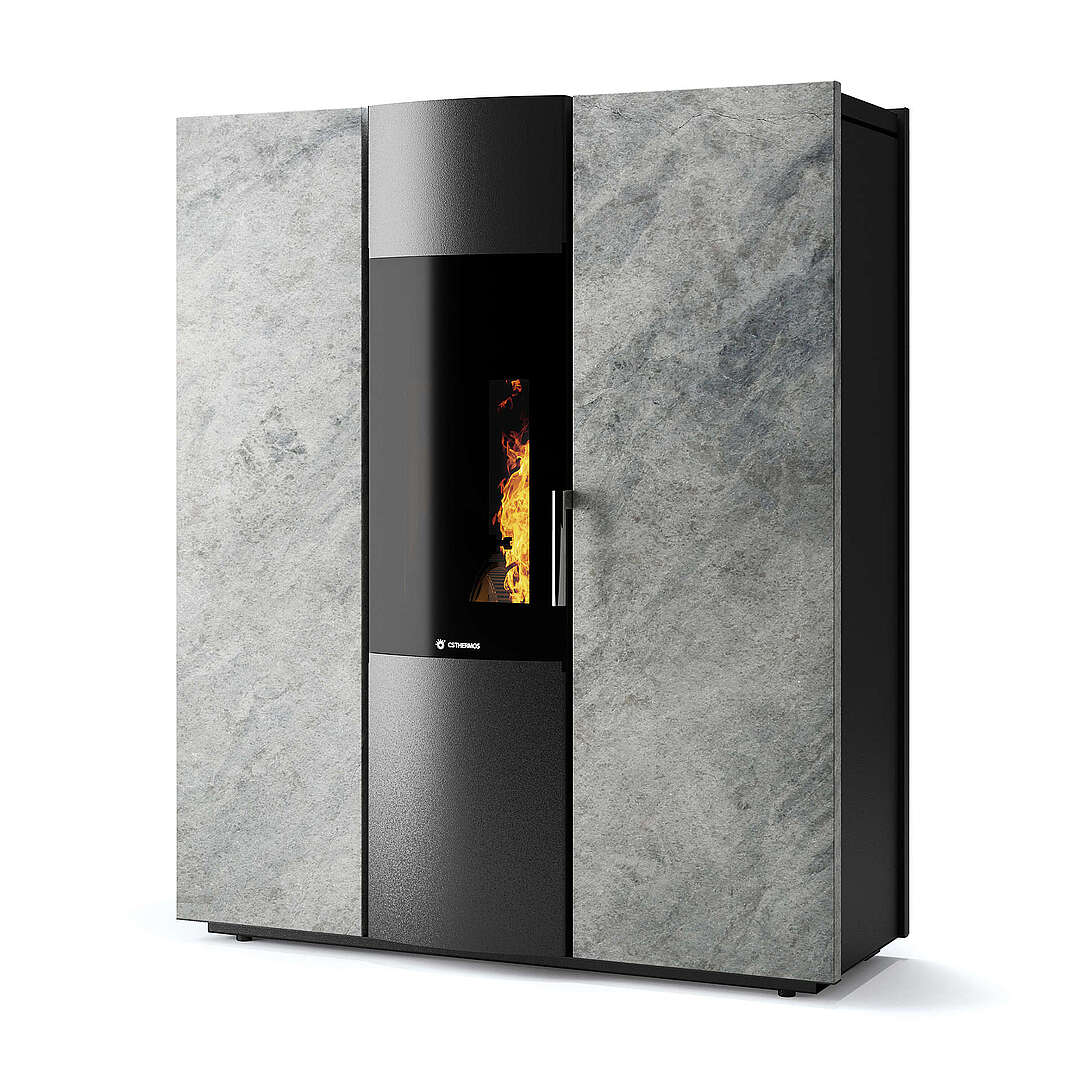

The essential balance between fire and water Starting from nature as a source of inspiration, the new Thema H2O thermo stove embraces the concepts of ecology through its materials and excellent performances. The high yields and the versatility of the shapes that characterize it, give life to an innovative thermo stove, able to be the protagonist of your home environment.
On the return circuit, a chemical-physical water treatment system must be installed, for instance a magnetic dislimer.
★
★
★
★
★
Technical data
Soapstone
- Tipology
- Thermostove
- Fuel
- Pellets / Biomass
- Coating
- MDi, Metal, Stone
- Introduced heat output / to firebox
- 15.77 kW
- Nominal heat output (min÷max)
- 7.4 ÷ 14.9 kW
- Nominal heat output to space (min÷max)
- 0.7 ÷ 1.9 kW
- Nominal heat output to water (min÷max)
- 6.8 ÷ 13 kW
- Heated volume
- 410 m³
- Nominal performance
- 94.5 %
- CO emissions at 13% O²
- 64 mg/Nm³
- Power levels
- 6
- Flue gas outlet
- Rear, Upper
- Weight
- 240 kg
- Dimensions WxDxH
- 105 x 40 x 126 cm
- Pellet tank capacity
- 21 kg
- Flue gas output diameter
- 80 mm
★
★
★
★
★
This product complies with the Class 5 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
Oak Stone
Alps Green Stone
Platinum White Stone
Azalai Black Stone
Umbra Stone
Black Metal
Metallic Red Metal
White Metal
Feature
- Patented self-cleaning burner
- Tank anti-backflame safety
- Double ignition element
- Robust structure
- Hermetically sealed pellet hopper
Supplied Accessories
- Electronic circulator pump
- Anti-condensation valve with thermostatic control of the system return temperature
- System pressure gauge
- DHW probe
- Water tank probe
- Hydraulic safety devices kit: expansions vase, 3 bar outlet valve, automatic vent valve, system drain.
- Ash drawer
- "L" bar for ash cleaning
Accessories on demand
- Wi-Fi remote control via APP
Plus
Pellet
Biomass
Thermo hydro
Multifuel patented burner
Backfire impossible
Anti Blow System
Radiant glass
Rear or top flue gas
Air intake from outside
Hermetic closure
Wi-Fi Smart Home
Certifications
CE EN 14785
Energy Class A++
Eco Design 2022
Conto Termico
Equivalent 7 Étoiles
