Scrigno
A+
Stove with self-cleaning pellet and biomass burner with eye-catching design characterized by the two “casket” doors and the serigraphed glass door. It uses the new high performance combustion chamber and maintains all the quietness and safety features of CS Thermos products, with the plus of the upper or rear flue header.
Hermetic closure of the fuel tank.
★
★
★
★
★
Technical data
Red
- Tipology
- Stove
- Fuel
- Pellets / Biomass
- Coating
- Metal
- Introduced heat output / to firebox
- 8.9 kW
- Nominal heat output (min÷max)
- 3.45 ÷ 8.07 kW
- Heated volume
- 80 ÷ 230 m³
- Nominal performance
- 90.72 %
- CO emissions at 13% O²
- 70 mg/Nm³
- Power levels
- 6
- Flue gas outlet
- Rear, Upper
- Air ducting
- No
- Weight
- 123 kg
- Dimensions WxDxH
- 46 x 49 x 106 cm
- Pellet tank capacity
- 12 kg
- Flue gas output diameter
- 80 mm
★
★
★
★
★
This product complies with the Class 5 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
White
Bronze
Black
Feature
- Patented self-cleaning burner
- Tank anti-backflame safety
- Double ignition element
- Robust structure
- Hermetically sealed pellet hopper
Supplied Accessories
- Ash drawer
- "L" bar for ash cleaning
Accessories on demand
- Wi-fi connection kit
- Kit intelligent remote control whith thermostat function
- Remote control for switching on, regulating the power and the set temperature
- Wi-Fi remote control via APP
Plus
Pellet
Biomass
Air
Multifuel patented burner
Backfire impossible
Anti Blow System
Maximum quietness
Direct air with forced ventilation
Air intake from outside
Rear or top flue gas
Hermetic closure
Wi-Fi Smart Home
Certifications
CE EN 14785
Energy Class A+
Eco Design 2022
Conto Termico
Equivalent 7 Étoiles
Download
Brochure/Flyer
Brochure
Instruction manual
Certificate of Conformity
Star Rating (Italian Standard)
Dop

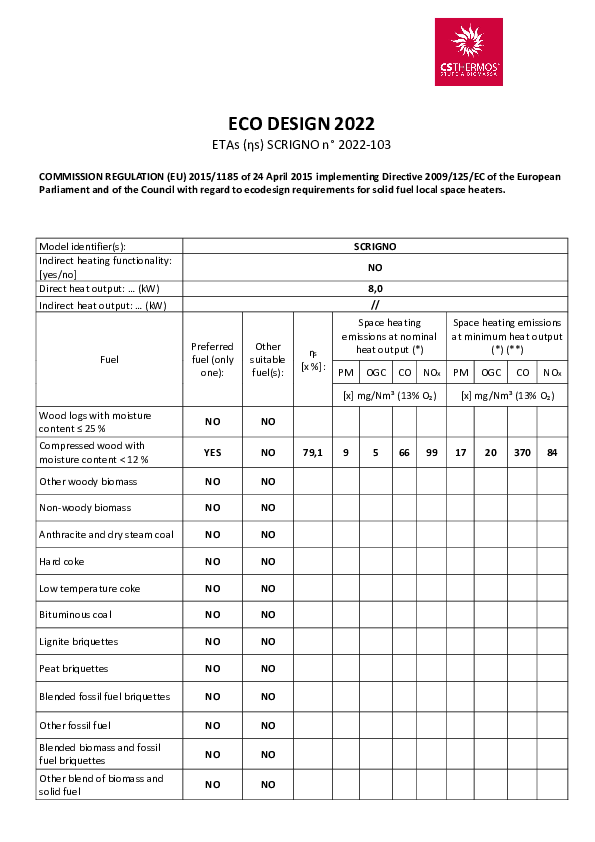

ECO DESIGN 2022
Energy Label
