Garda 9 Plus Hermetic
A+
A microcosm of natural wellbeing
The new Garda stove from CS Thermos is characterised by exclusive design, superb performance and unrivalled comfort. Low emissions and the latest innovations ensure personal wellbeing and protect the environment.
The heart of the Garda stove: CS THERMOS’ patented, self-cleaning, ecological, multi-fuel burner. Designed to meet the highest standards of safety, this unique burner offers numerous advantages: 5 different pre-programmed fuel menus; ash discharge without shutting down the burner for reduced electrical energy consumption; dual igniter for shorter start-up times and guaranteed continuous functioning; dual screw feed to prevent back-firing to the hopper.
Technical data
Black Ceramic
- Tipology
- Stove
- Fuel
- Pellets / Biomass
- Coating
- Ceramic
- Introduced heat output / to firebox
- 10.09 kW
- Nominal heat output (min÷max)
- 4.2 ÷ 9.26 kW
- Heated volume
- 80 ÷ 340 m³
- Nominal performance
- 91.78 %
- CO emissions at 13% O²
- 120 mg/Nm³
- Power levels
- 6
- Flue gas outlet
- Rear, Upper
- Air ducting
- No
- Weight
- 144 kg
- Dimensions WxDxH
- 50 x 56 x 108 cm
- Pellet tank capacity
- 13 kg
- Flue gas output diameter
- 80 mm
This product complies with the Class 5 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
Burgundy Red Ceramic
White Ceramic
Feature
- Patented self-cleaning burner
- Tank anti-backflame safety
- Double ignition element
- Robust structure
- Hermetically sealed pellet hopper
- Natural convection option on power settings 1 and 2
Supplied Accessories
- Ash drawer
- "L" bar for ash cleaning
Accessories on demand
- Wi-fi connection kit
- Kit intelligent remote control whith thermostat function
- Remote control for switching on, regulating the power and the set temperature
- Upper flue gas exhaust kit
- Wi-Fi remote control via APP
Feature
Curved panoramic glass
Weekly timer
Horizontal or vertical flue gas outlet
Easy-to-clean heat exchangers
Large ash pan
Easy-to-clean exhaust
Plus
Pellet
Biomass
Air
Étanche
Multifuel patented burner
Backfire impossible
Anti Blow System
Direct air with forced ventilation
Air intake from outside
Rear or top flue gas
Natural convection
Maximum quietness
Hermetic closure
Wi-Fi Smart Home
Certifications
CE EN 14785
Energy Class A+
Eco Design 2022
Conto Termico
Equivalent 7 Étoiles
Download
Brochure/Flyer
Brochure
Instruction manual
Certificate of Conformity
Star Rating (Italian Standard)
Hermetic Stove - Leakage Test

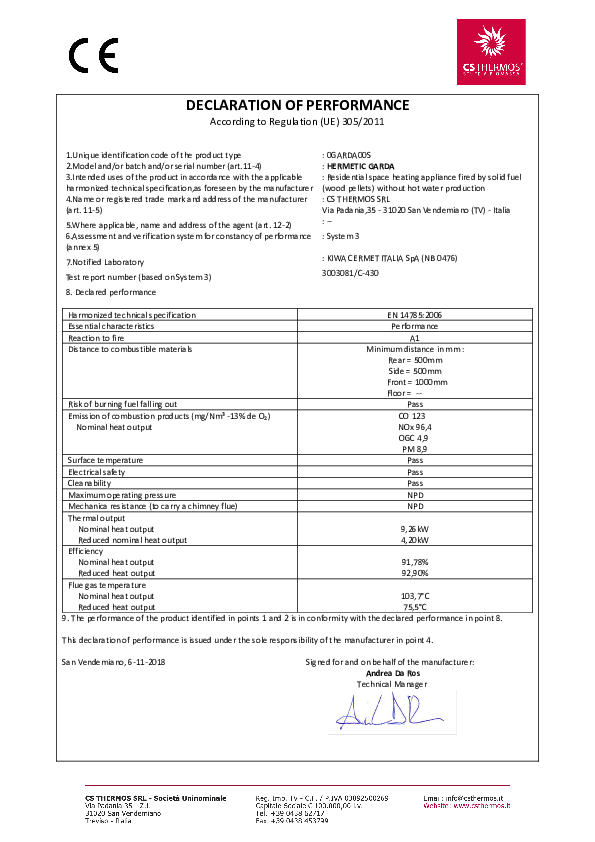

Dop
ECO DESIGN 2022
Energy Label
