Lyra 19
A++
Boiler range dedicated to the technical room
CERTIFIED ACCORDING TO EUROPEAN STANDARD EN 303-5 / 2012
The boilers Lyra have a wide exchange surface and thus ensure heating of large areas and excellent water yields.
The advantages make them extremely comfortable and suitable to provide healthy heat using environmentally sustainable fuels:
electronic modulation
self-cleaning brazier in cast iron
very large ash tray
advanced electronics
possibility of switching summer / winter
daily / weekly programming
compact and elegant design
remote control with backlit graphic display
These machines, in addition to being equipped with all electronic, mechanical and hydraulic safety devices required by the regulations in force, are equipped with:
Anti-condensation valve with thermostatic control of the system return temperature
electronic circulator
DHW tank probe
8 liters expansion vase
manometer to read system pressure
It is recommended to install a hydraulic separator and/or a puffer on the system to optimize operation. The buffer capacity will vary depending on the water content of the system.
On the return circuit, a chemical-physical water treatment system must be installed, for instance a magnetic dislimer.
Technical data
White
- Tipology
- Heater
- Fuel
- Pellets / Biomass
- Coating
- Metal
- Introduced heat output / to firebox
- 20.99 kW
- Nominal heat output (min÷max)
- 4.83 ÷ 19.6 kW
- Heated volume
- 500 m³
- Nominal performance
- 93.4 %
- CO emissions at 10% O²
- 153 mg/Nm³
- Power levels
- 6
- Flue gas outlet
- Rear, Upper
- Air ducting
- No
- Weight
- 299 kg
- Dimensions WxDxH
- 80 x 71 x 133 cm
- Pellet tank capacity
- 70 kg
- Flue gas output diameter
- 80 mm
This product complies with the Class 3 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
White
Feature
- Patented self-cleaning burner
- Tank anti-backflame safety
- Double ignition element
- Robust structure
- Hermetically sealed pellet hopper
Supplied Accessories
- Electronic circulator pump
- Anti-condensation valve with thermostatic control of the system return temperature
- System pressure gauge
- DHW probe
- Water tank probe
- Hydraulic safety devices kit: expansions vase, 3 bar outlet valve, automatic vent valve, system drain.
- Ash drawer
- "L" bar for ash cleaning
Accessories on demand
- Wi-Fi remote control via APP
- Remote control
- Automatic loading kit (1 capacitive level sensors and additional electronic board)
- Auger 1600 mm
- additional fuel tank with wheels 0,38 m3 – Kg. 220 - 240
Plus
Pellet
Biomass
Thermo hydro
Multifuel patented burner
Backfire impossible
Anti Blow System
Rear or top flue gas
Air intake from outside
Programmable remote thermostat
Hermetic closure
Wi-Fi Smart Home
Certifications
CE EN 303-5
Energy Class A++
Eco Design 2022
Conto Termico
Class 5 boiler
Download
Brochure/Flyer
Brochure

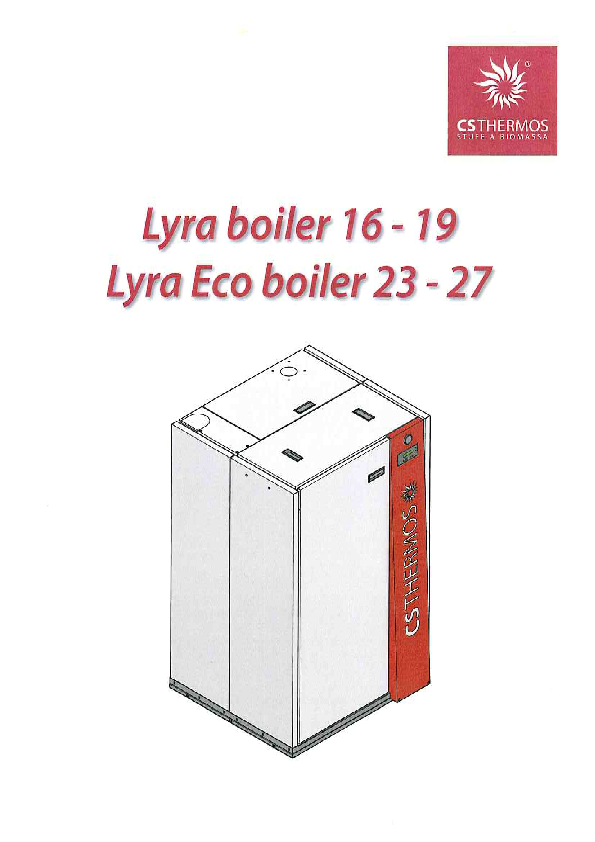

User Manual

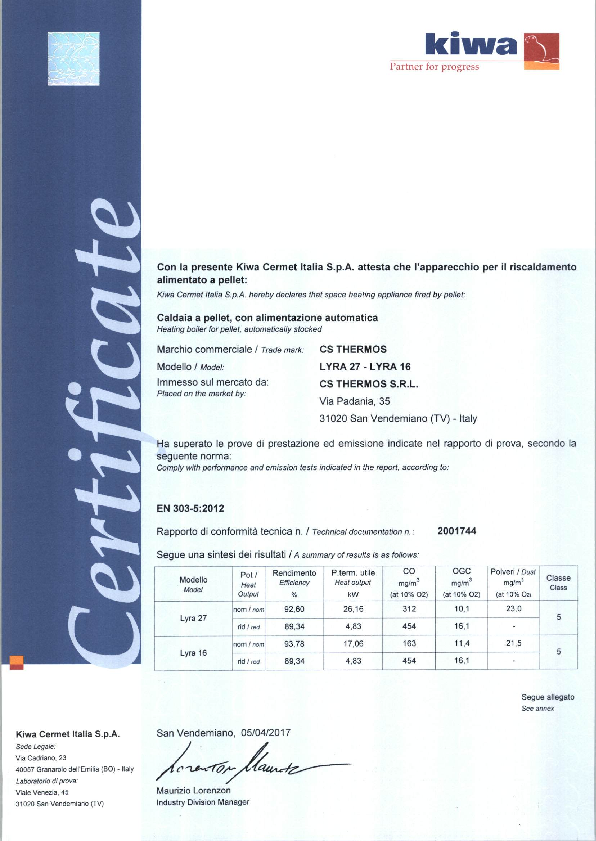

Certificate of Conformity
Star Rating (Italian Standard)

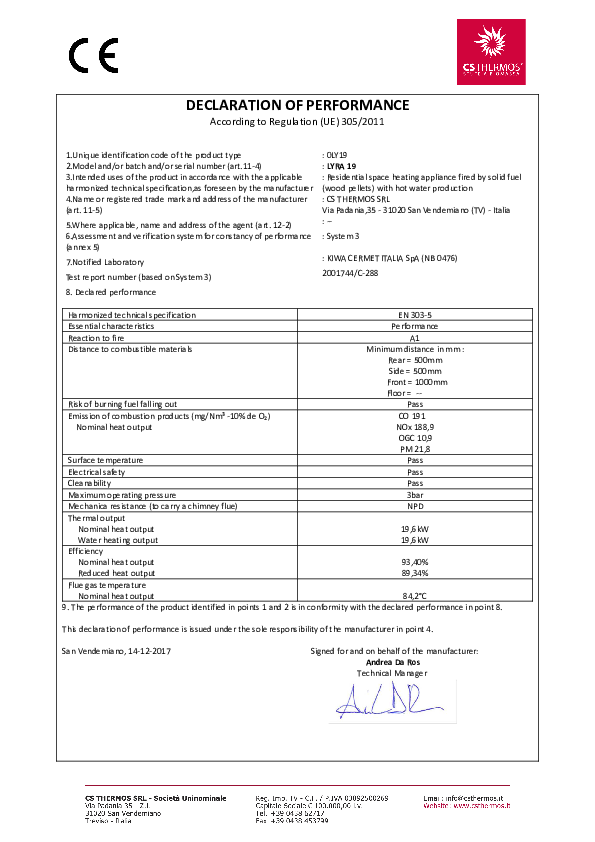

Dop 10% O₂
